Sony TR-741

TR-741 inside

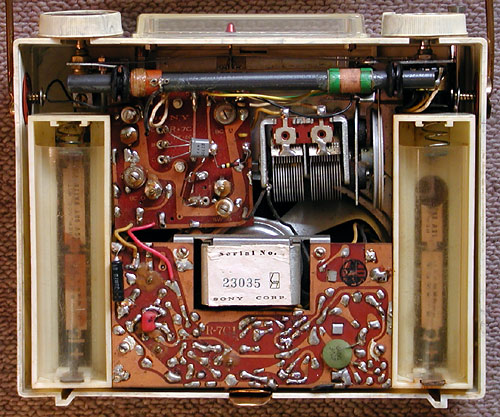

The one oval transistor you see on the coil pack circuit board is the 2T701. Note the spring-loaded stays for the carry handle that ensure it stays firmly in place when folded down 90-degrees to rest in the pose seen on the previous page. Another thing you can make out in this photo is the nice big brass clip that helps secure the back cover in place.

Transistors: 2T701, 2T76 x 2, 2T65, 2T66, 2T85 x 2, [1T23 x 3, 1T42]
Power source: 4 x D-cells (UM-1) = 6V
SW band: 3.9 ~ 12.1Mc
