Sony TR-6

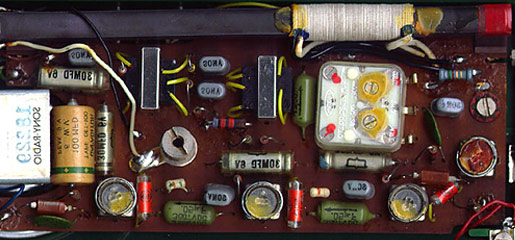

Rev. D Circuit Board - Both Sides

I've flipped the lower photo around (backward) so the orientation of the parts match the pattern in the upper photo. I know it looks weird, but thought this would make viewing easier.

If you just can't get enough and wish to see an image that shows the parts side laid over the printed pattern, click here.
