Sony TR-6
Rev. I~1 Circuit Board - Both Sides

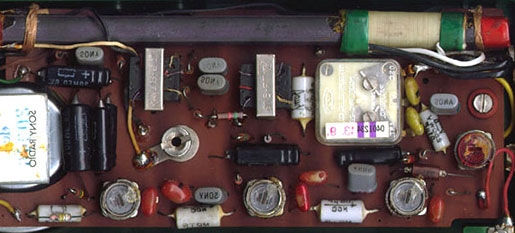

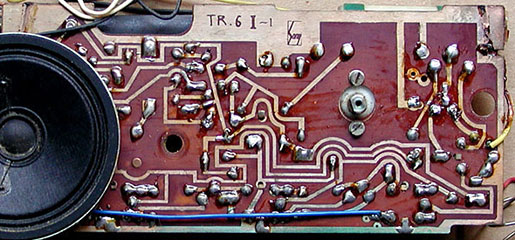

I've flipped the lower photo around (backward) so the orientation of the parts match the pattern in the upper photo. I know it looks weird, but thought this would make viewing easier. (You can see the parts side in proper orientation by clicking here. If you use this link, click the BACK button in your browser's tool bar to return to this page.)

If you just can't get enough and wish to see an image that shows the parts side laid over the printed pattern, click here.
